Although Imacoat HE100 is an essential part in the coating process, the application of it, is at least as important. Only the combination of chemistry and application technology assures a reliable process and the highest quality of the final product. The K-II coating hood is specially designed to meet today’s industry needs and has been introduced with great succes.
The hood is supplied in a ready-to-be-installed configuration and several accessories are optional available.
The standard outfit includes cooling and exhaust.



What are my options?

K-II (Standard version)

  • Length: 1600 mm
  • Maximum bottles per minute: 500
  • Maximum bottle height: 500 mm

KL-II (High speed)

  • Length: 2000 mm
  • Maximum bottles per minute: 850
  • Maximum bottle height: 350 mm

KS-II (Limited space)

  • Length: 1300 mm
  • Maximum bottles per minute: 450
  • Maximum bottle height: 500 mm

K-I (Custom)

  • Custom specification within design limits

What are the sub-systems?

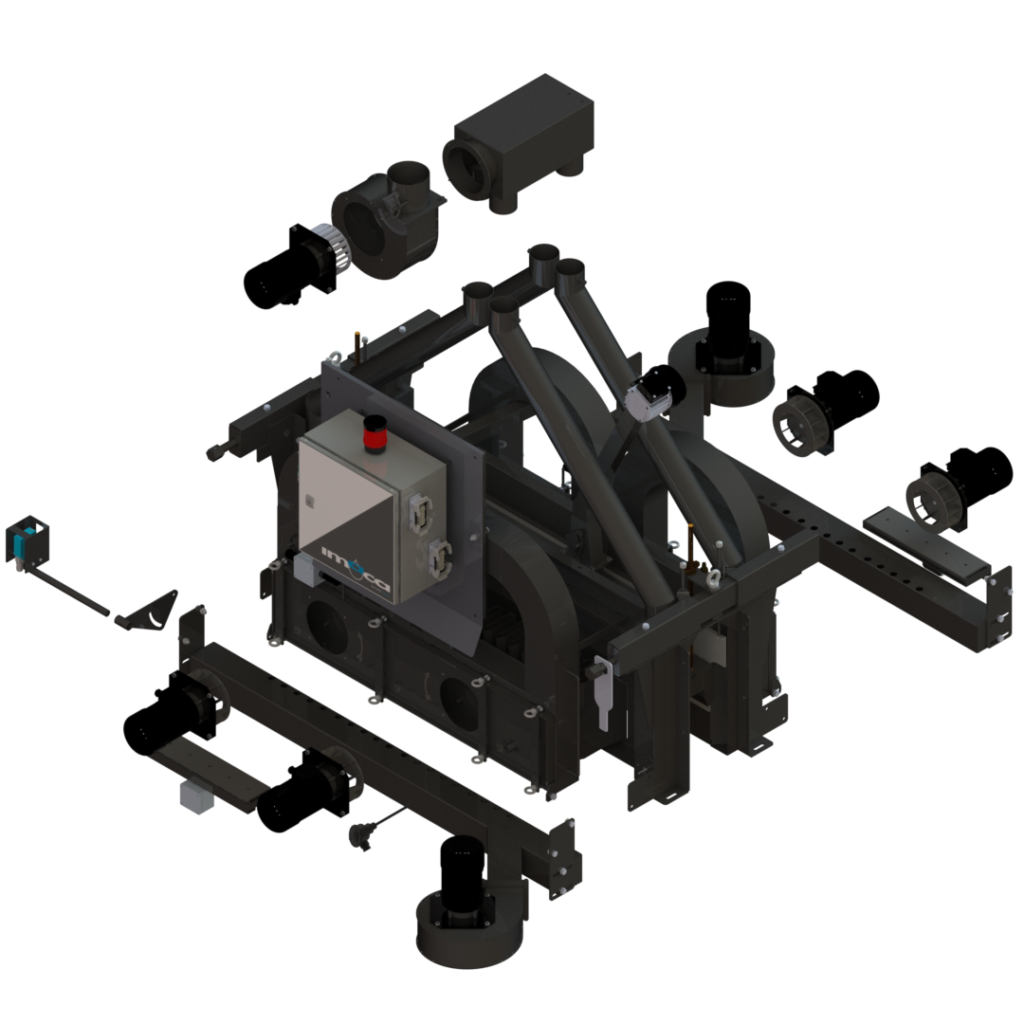

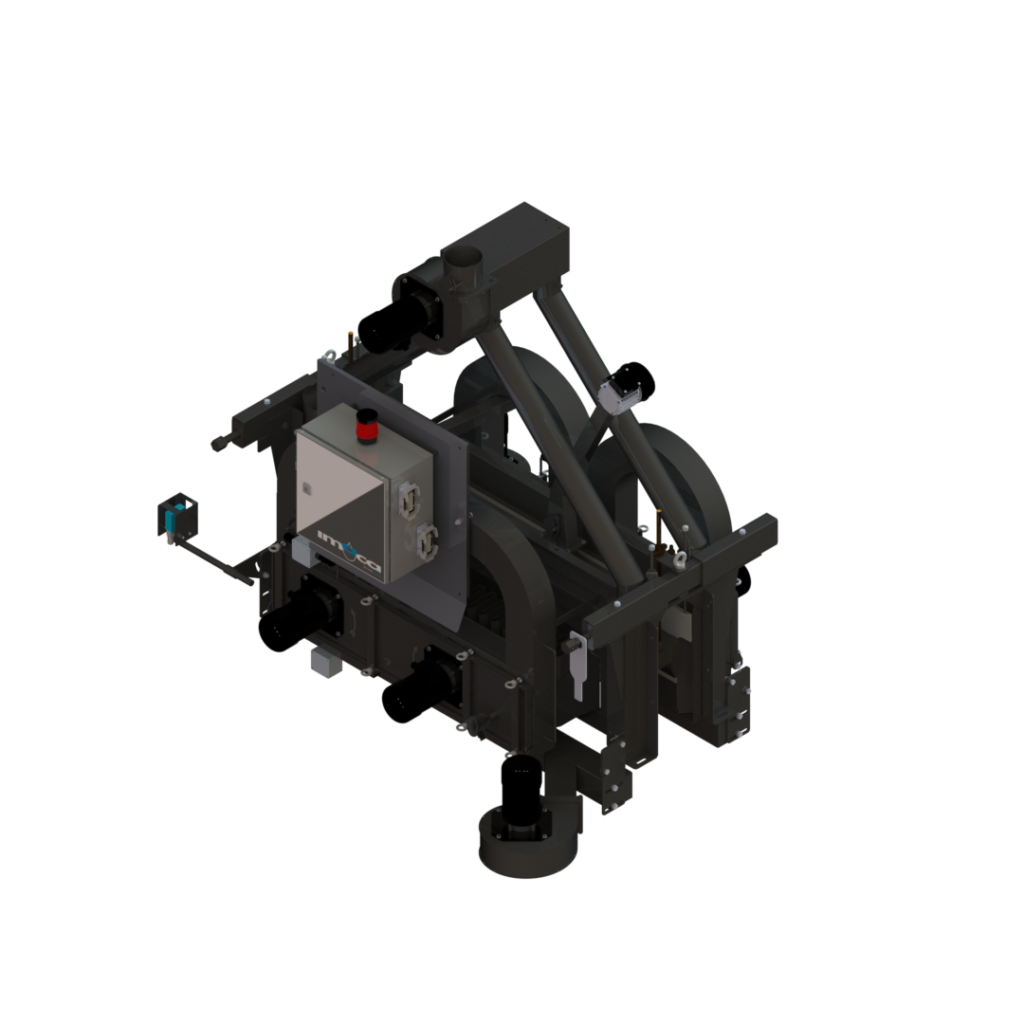

The Imaca coating hood has multiple systems. We have detailed them in the image on the left. The systems are:

  • Black – PT100 (Temperature)
  • Blue – Cooling system
  • Orange – Finish protection system
  • Purple – Bottle detection
  • Red – Exhaust system
  • Turqouise – Heating system
  • Yellow – Gas circulation system

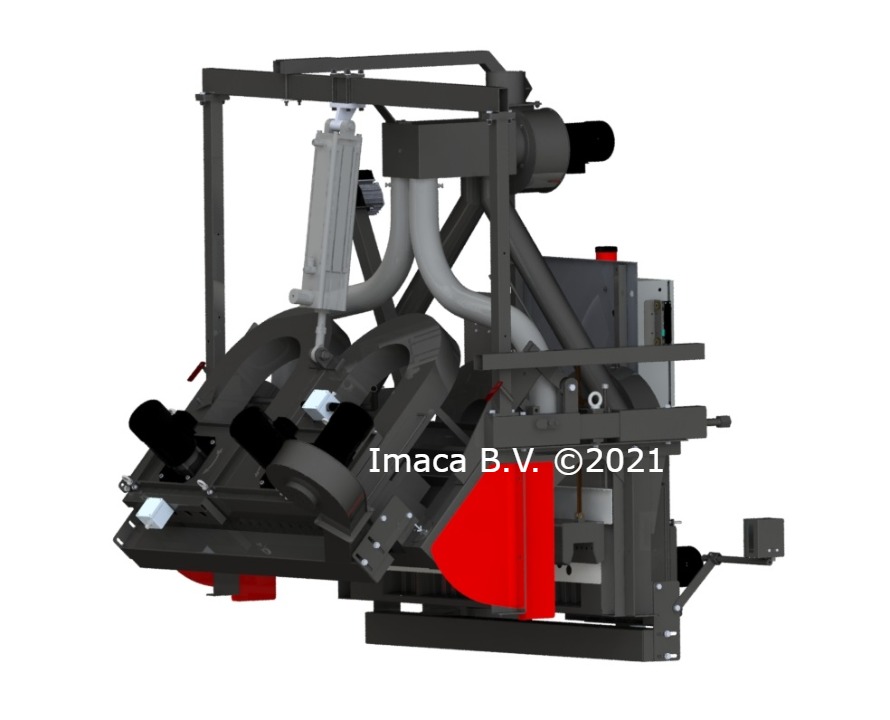

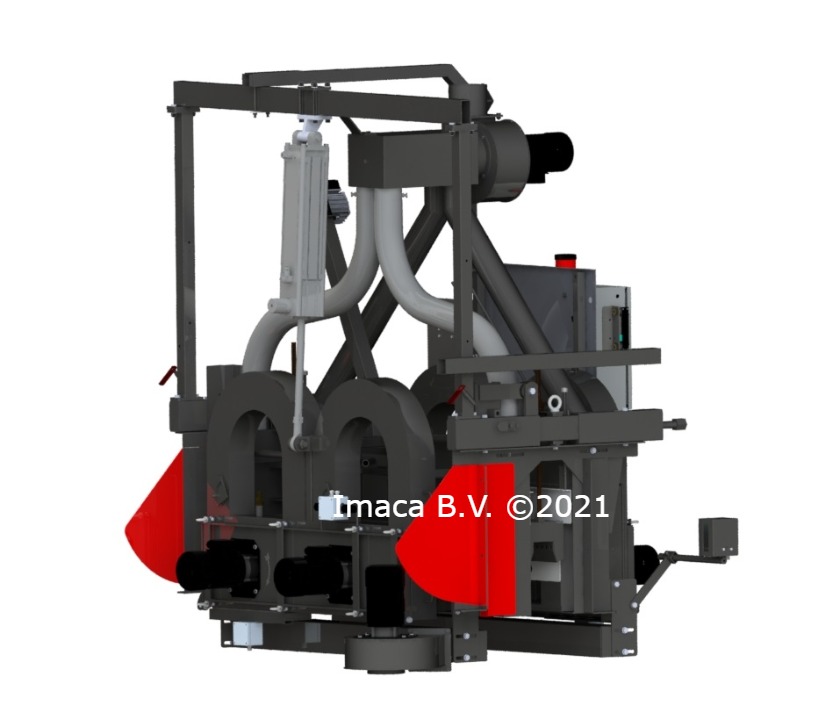

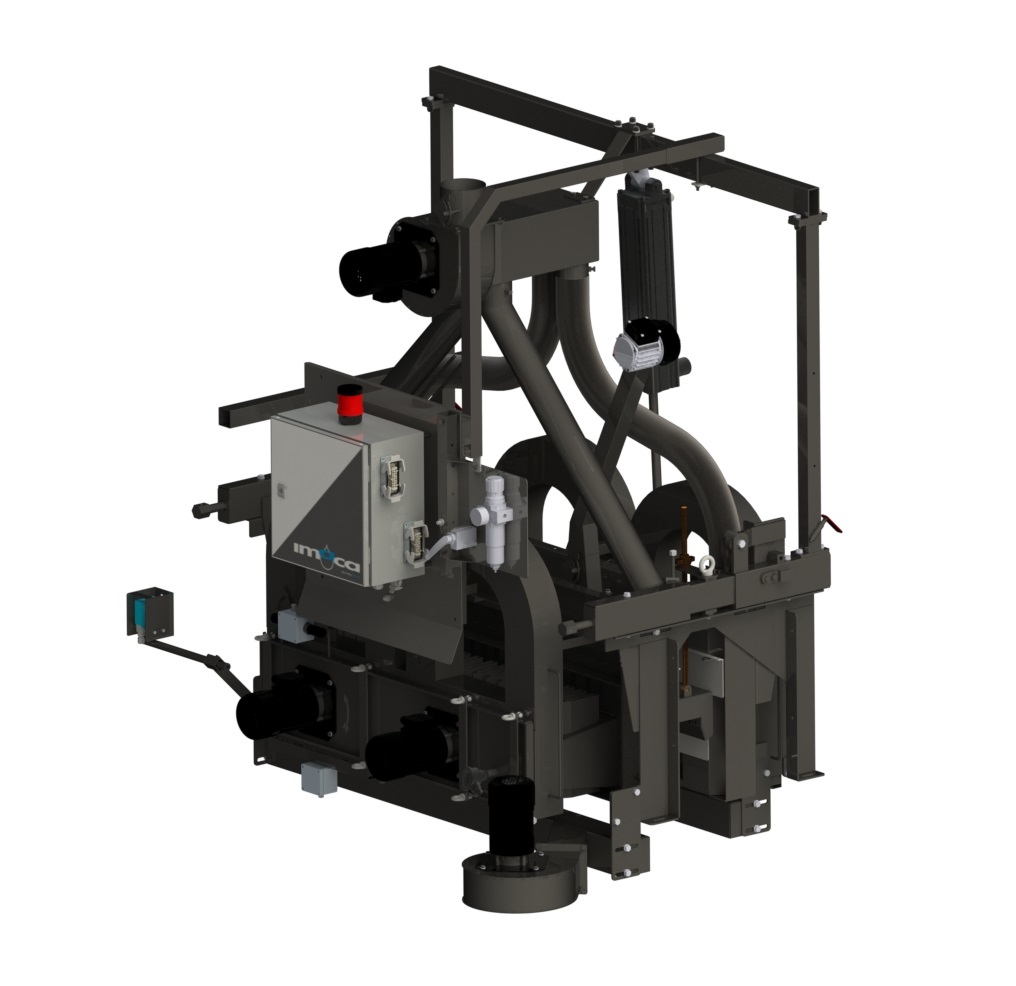

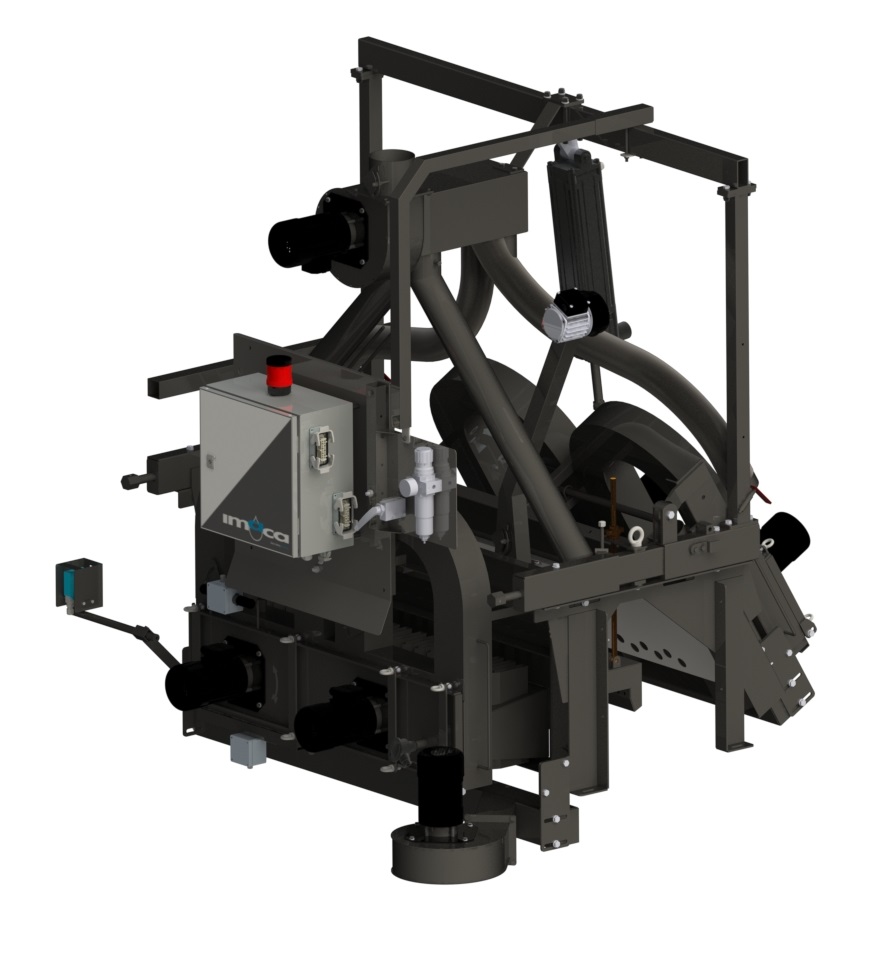

Besides the systems above, we also have the « Swing » option. With this system you will have the abillity to open the coating hood on one side and remove jammed production.

We have multiple options regarding the sub-systems, for more information see the next chapter.


Is that all?

Not at all, we have some more options for you. For this you will have to navigate to our control cabinet page, you can find it by clicking on the link below.
